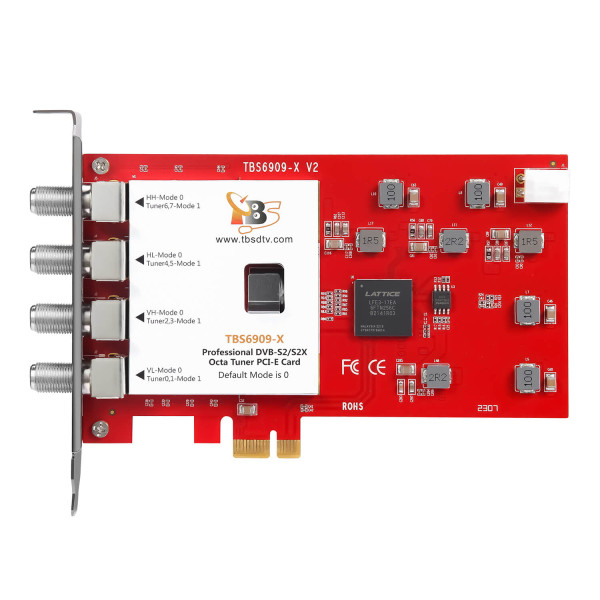

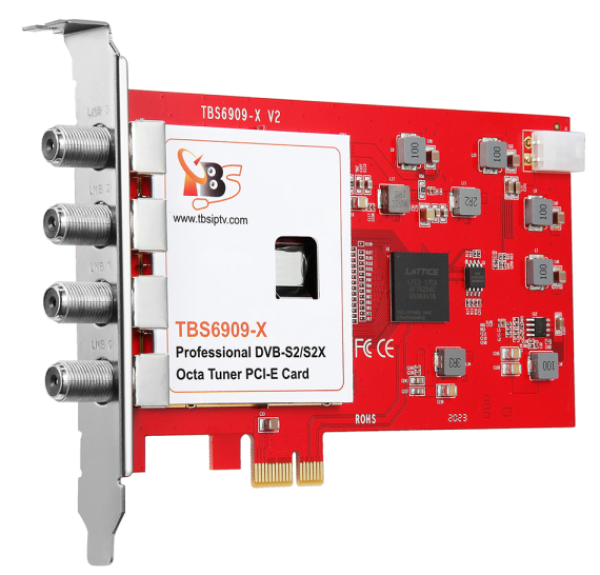

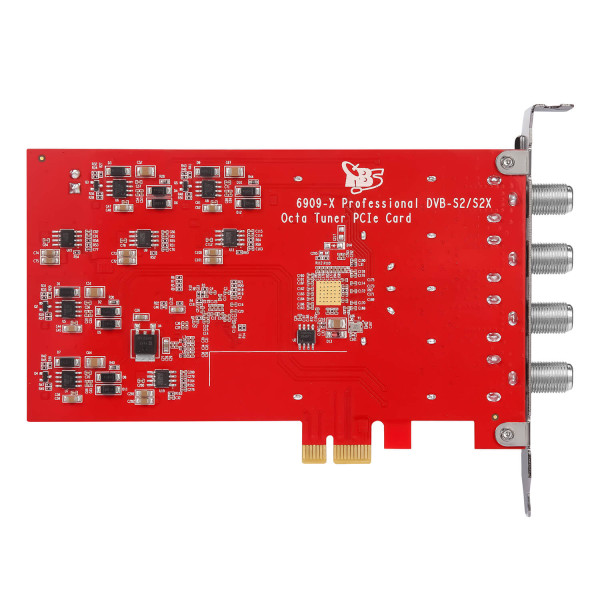

TBS6909-X V2 DVB-S2X/S2/S Octa Tuner PCIe Card Compatible with Tvheadend
TBSŠifra: TBS008
- Proizvod iz grupe: TV Tuner PCle kartice
- Proizvođač: TBS
WebCena:
0.00 rsd.
TBS6909-X V2 je moćan DVB-S2X/S2 i aneks M octa tjuner kartice sa PCI Express interfejsom, ne samo da podržava istovremeno primanje SD/HD digitalnih TV kanala iz 8 različitih satelitskih transpondera, već podržava i CCM, ACM, VCM i Multi Input Stream, koji se smatra profesionalnim TV tjunerom za korisnike industrijskog nivoa. Kada imate ograničene PCIe konektore na serveru, TBS6909-X V2 vam omogućava da primite više kanala od uobičajenog dualnog ili quad TV tjunera, stoga se preporučuje za emitovanje sistema.
Specifikacija
| Model | TBS6909-X V2 | |
| Connection | PCI-express | |
| 4x RF in | ||
| DVB-S/S2/S2X | ||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | ||
| FECFRAME (normal) | 64800 (bits) | |
| DVB-S2X (Normal) | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 13/45 | ||
| 9/20,11/20 | ||
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 23/36,25/36,13/18 | ||
| 8PSK-L | 5/9,26/45 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (S2-MODCODs) | |
| 26/45,3/5,28/45, 23/36, 25/36,13/18,7/9,77/90 | ||
| 16APSK-L | 5/9,8/15,1/2,3/5,2/3 | |
| 32APSK | 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs) 32/45 ,11/15,7/9 | |
| 32APSK-L | 2/3 | |
| 64APSK | 11/15, 7/9,4/5, 5/6. | |
| 64APSK_L | 32/45 | |
| FECFRAME (short) | 16200(bits) | |
| DVB-S2X (short) | QPSK | 1/4, 1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3,3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45,7/15, 8/15, 32/45 | ||
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK | 2/3, 32/45 | |
| VCM | Yes | |
| ACM | Yes | |
| Potrošnja energije | ||
| Ulaz/snaga: | 12V/7 ~ 20W | |
| temperatura | 0° ~ 78° | |
| Sistemski zahtevi | Windows XP / Vista/ 7/8/10, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Dimenzija: | ||
| Veličina TV kartice | 145 * 92 * 1.6mm | |
| Veličina kutije | 200 * 130 * 30mm | |
| Težina | 400g | |
| Sadržaj paketa | 1 * TBS6909-X | |
| 1 * Kabl za napajanje | ||
Ograničenja maksimalne brzine DVB-S2X/S2 (Msymb/s)
| Msymb/s | Demod | LDPC | 4 simultaneous demodulators |
6 simultaneous demodulators |
8 simultaneous demodulators |
| QPSK | 64 | 720 | 64 | 60 | 45 |
| 8PSK | 64 | 720 | 60 | 45 | 30 |
| 16APSK | 64 | 720 | 45 | 30 | 22.5 |
| 32APSK | 51 | 720 | 36 | 24 | 18 |
| 64APSK | 43 | 720 | 30 | 20 | 15 |
